5dBi Dipole Antenna w/ USB Extension Cable 802.11g 500mW, 27dBm High Gain Adapte

$32.50

Add to Cart:

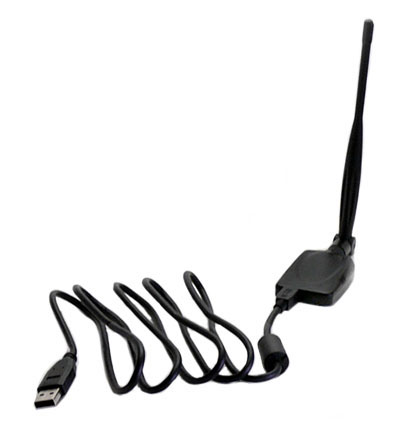

5dBi Dipole Antenna w/ USB Extension Cable 802.11g 500mW, 27dBm High Gain Adapte

larger image

WirelessI EEE 802.11g USB 2.0 High-Gain Adapter
500mW, 27dBm w/High Gain 5dBi Dipole Antenna w/ USB Extension Cable
AP Supported
Chipset: Realtek
Improving 2X Signal Reception and Speed
Made in Taiwan=Quality Assurance

Part#: ARG-27P-BK

Description:

802.11 b/g High-Power Wireless LAN USB - Palm (500mW)

High Power WLAN USB adapter (mini Palm) fully supports the features and functional compliance of IEEE 802.11b/g standard. It enables the deployment the latest updated WMMTM (Wi-Fi Multimedia). Our WLAN USB palm provides competitive price, high power and stable performance to PC & NB in wireless network world.

Features:

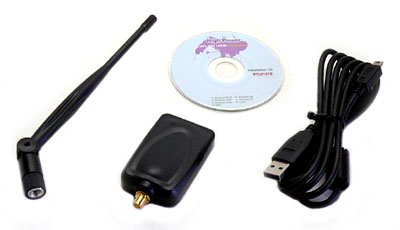

WLAN USB adapter Palm + 5 dBi dipole Antenna

Power up to 500mW
High power in compact size - mini palm
Constant and stable performance
User-friendly and easy installation.
Operating distance of up to 1000 meters (depending on surrounding environment)
Support Software AP mode and WMMTM (Wi-Fi Multimedia) function
Support USB 2.0/1.1 interface.

Specification:

Model	ARG-U25g WLAN USB adapter - Palm
Standard:	IEEE 802.11b, IEEE 802.11g (WiFi Compatible)
Chipset:	Realtek 8187B + 8225
Frequency Band:	2.412GHz ~ 2.484GHz unlicensed ISM band
Data Rate:	IEEE 802.11b: 1, 2, 5.5, 11Mbps
Data Rate:	IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
Transmitter Power:	11g : 15 ± 2dBm@54Mbps, EVM<-24dB
Transmitter Power:	11b : 25 ± 2dBm, EVM <35%
Receive Sensitivity:	Operating at 11Mbps:＜-82dBm@8%PER,
Receive Sensitivity:	54Mbps:＜-65dBm@10%PER
Operating Range:	Up to 1000M, depending on surrounding environment
Power Consumption:	Transmit:＜600mA ; Receive:＜400mA
Antenna	attached dipole Antenna
Security:	WEP (64/128/256bit), WPA, WPA-PSK, WPA2 TKIP/AES, WPA2-PSK
I/O Interface:	USB2.0/1.1
Operating System:	Windows98SE, ME, 2000, XP, SP2, Vista, MAC, Linux
Operating Temperature:	-10 ~ 55 Celsius
Storage Temperature:	-20 ~ 70 Celsius
Humidity:	10 ~90% (non-condensing)
Size:	Palm: 6.5 (L)x4.0 (W)x1.5 (H)cm ; BOX: 15(L)x16(W)x3.8(H)cm; Antanna: 19.1 cm
Weight:	37.8g (Color BOX: 200g)
Warranty	1 year
